PLATES & COILS

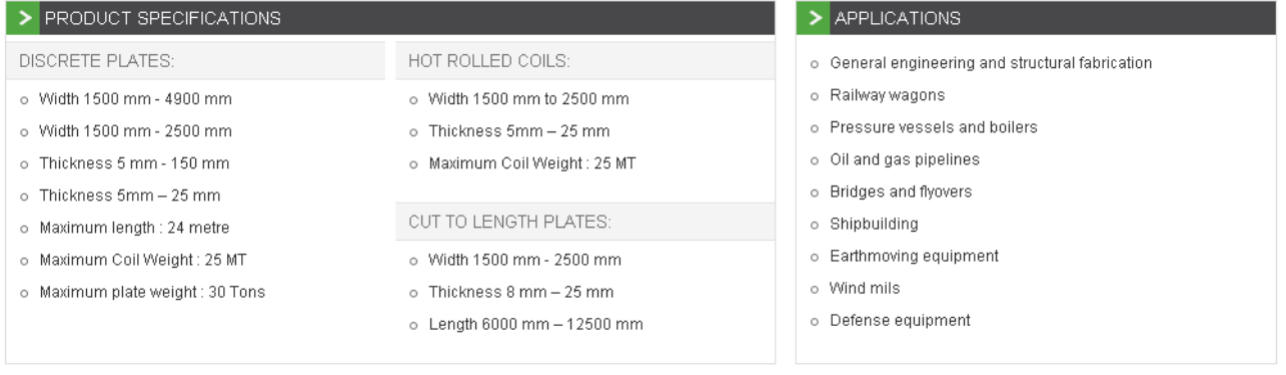

JSPL is equipped with India's first state-of-the-art plate mill that started producing plates and coils of 5 metre and 3 metre width respectively, for the first time in the private sector. The plate-cum-coil mill (steckle mill) of 1 MTPA capacity located at Raigarh, Chhattisgarh produces plates ranging from 8 mm to 120 mm in thickness in widths of 1500 mm to 3500 mm and coils in thickness range of 8 mm to 25 mm in widths of 1500 mm to 2500 mm. The mill is equipped with walking beam type of reheating furnace where slabs are re-heated at a temperature of 1250 degree celsius and rolled in a mill with a 2 hi-reversing type roughing stand and a 4 hi-reversing type finishing stand. To ensure excellent surface quality, high pressure de-scalers are provided at the entry and exit points. An auto level 2 width and thickness controlling system coupled with heavy leveler assures close dimensional tolerances and an increased level of flatness control. Right from the slab charging and plate production to the conclusive stage, fully equipped inspection facilities are in place. The plate mill at Angul, Odisha of 1.5 MTPA capacity produces plates in the thickness range of 5-150 mm with a width of up to 5000 mm. The mill is equipped with latest equipment and technology like MULPIC cooling, online ultrasonic testing, trimming shear, slitting unit to produce plates of high strength and excellent surface finish. The plates and coils are of premium quality in terms of dimensional adherence and internal soundness owing to its clean raw material, sound steel refining facilities and an efficient rolling mill. These comply to IS 2062 specifications up to E450 grades besides a wide range of international standards and steel grades as per EN, DIN, JIS, ASTM and so on.The mill is approved by various societies such as LRS, DNV, ABS, , and GL for shipbuilding steel, besides, having accreditations such as: ISO 9001:2000, ISO 14001:2004 , OSHAS 18001, CE, ADW-2000 and certification by IBR for boiler grade steel, besides being a well known steelmaker.

Important features of JSPL Plate & Coil Mill testing facilities:

• Fully equipped sample preparation workshop. • Computerised tensile testing machine. • Digitalised hardness tester • EN and ASTM impact testing machines. • 100 T- bending-cum-folding machine.

• High magnification metallurgical microscope with image analyser. • Direct reading optical emission spectrometer with gas analytical channel. • Online ultrasonic testing machine. • Drop Weight Tear Test (DWTT) machine. • Chemical lab equipped with muffle furnace for research and development quality.

About

Products

Contacts

We    have    pleasure    to    introduce    ourselves    as    a    reputed    trading house    for    complete    IRON    &    STEEL    services.    We    deal    in    all categories,    sections    and    specifications    of    Steel    materials.    We procure   materials   from   main   producers   JINDAL   /SAIL   /   RINL   /   other reported    re-rollers    of    Indian    steel    industries    along    from    their authorized   dealers   and   conversion   agents.   We   also   procure   from other   large   and   medium   steel   plants   and   supply   them   as   per   the requirements of our esteemed customers.

S.S Steel Trading Corporation

A complete iron & Steel Solution at Your door

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,

Shiv Shkti Complex, JSPL, Transport Nagar, Vill : Gorkha, Disst. : Raigarh (C.G.) 496001 Ph. : 07762-227163 Mo. : 09907906163, 08966006163 e-mail : sssteel_trading@rediffmail.com      : info@sssteeltrading.com

• PLATES / CHEQUERED PLATES. • STRUCTURALS – Angles, Channels, Joists, T- Angle. (Regular Tapered flange beams.) • Hot Rolled Parallel Flange Beams / Columns and U Channels – by JINDAL & other imported section. • Colour coated Sheets/ Coil • H.R. Sheets / Coils. • G.P Sheets / Coils / G.C. Sheets. • C.R. Sheets / Coils. • TMT / CTD Bars / Wire rods / Rounds / Barbed M.S. & G.I wire / Binding Wires. • RAILS including Crane Rails. • And other Tailor made sections as per requirement.

Strength of Infrastruture
